Microcomputer control, digital display of relevant parameters.
The front and rear fixed covers and the card under the feeder are fixed.
It stops automatically when the doffer returns to the fiber flow, rough laps and card sliver ends.
Test conveying speed and drafting range, display length.

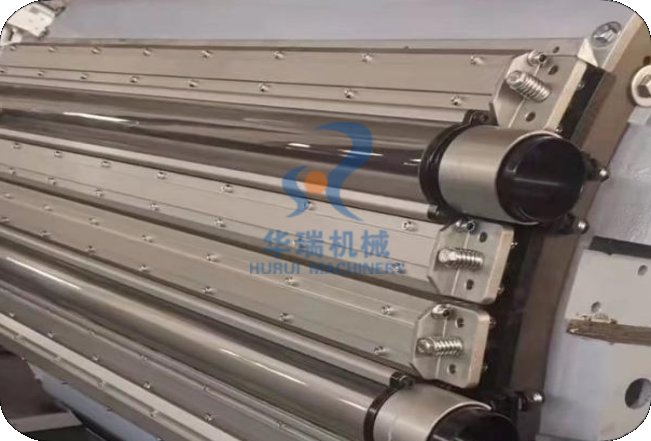

The flat top adopts 0.56mm small heel and toe to improve combing efficiency.
Doffer motor adopts stepless frequency conversion control by frequency converter.
Splicing has low speed and high speed motion.
Use continuous suction.
Optional configuration: Φ600x900mm or Φ600x1100mm coiler.
Equipped with adjustable front and rear aluminum alloy fixed covers and cotton mesh cleaner.
Production ration | 3.5~ 6.5 g/m |
Yield | 35kg/h |
Working width | 1000mm |
Working speed of cotton chemical fiber take-in roller | 1070 rpm (cotton), 980 rpm (chemical fiber) |

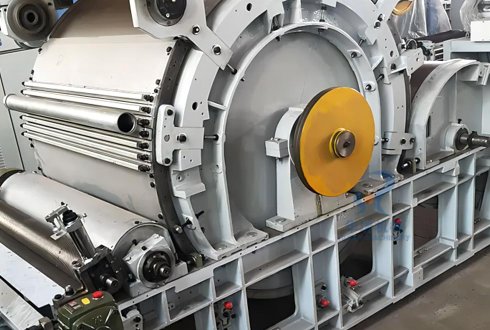

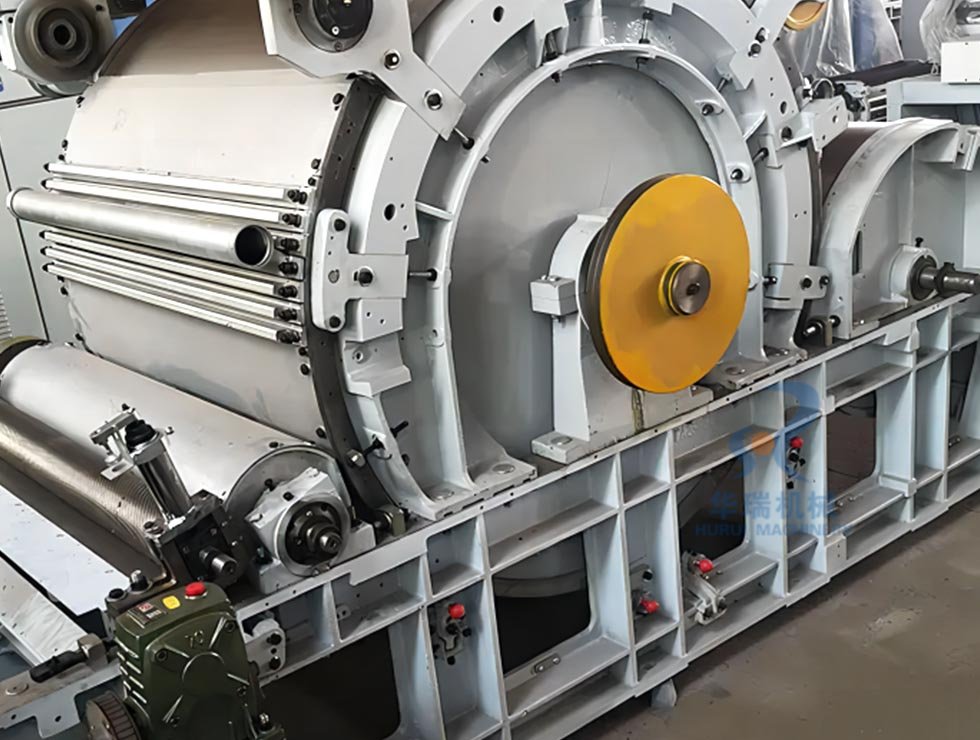

Cylinder working diameter | φ 1289 mm |
Doffer working diameter | φ 706 mm |
Cylinder working speed | 330-360 rpm |
Doffer working speed | 21.3-38.2 rpm |
Cotton fiber cover plate speed | 177 214 266 mm/min, 81 98 122 mm/min |
Coiler specifications | φ 600× 900 mm /φ 600× 1100 mm |
Wind pressure | 500- 600 Pa |
Main motor | 3.3 kW |
Doffer driving motor | 1.5 kW (variable frequency) |
Floor area (long × Width) | 3809 × 2092 mm |
Total weight | about 4500kg |
