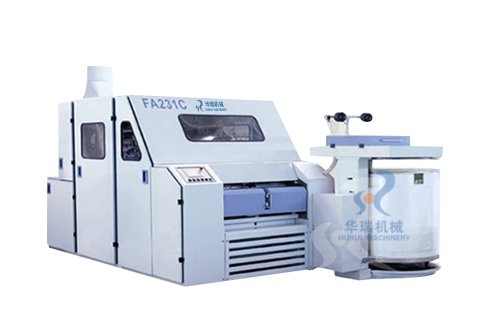

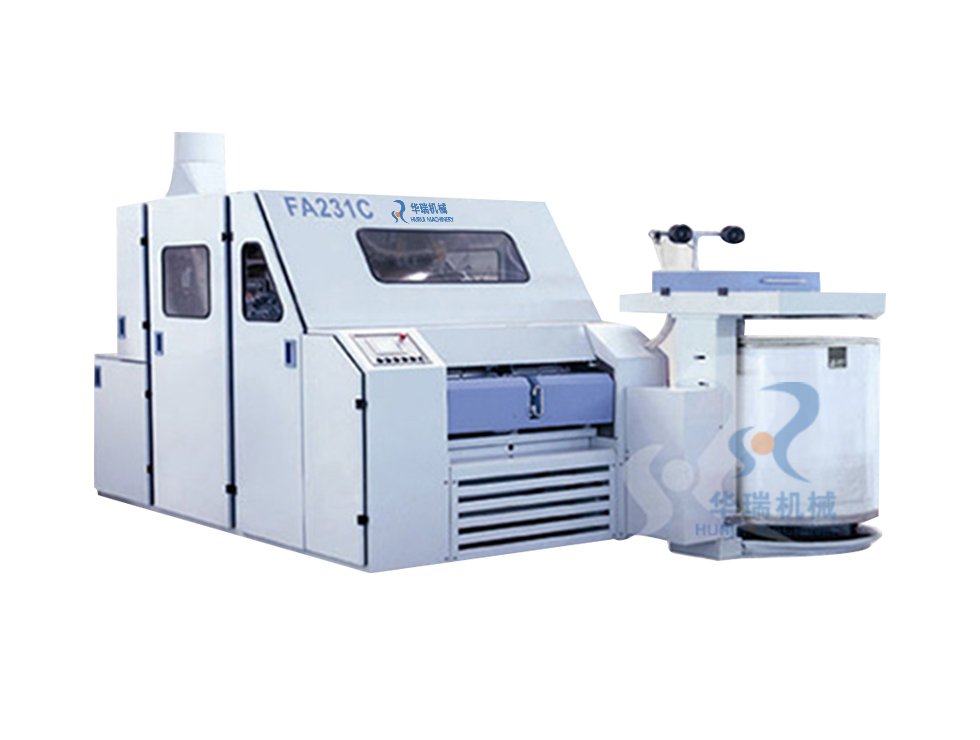

fa231c-carding-machine

Unique cotton stripping device.

The new FA231C carding machine is equipped with a flat top plate reversal device.

1. Specialized for spinning cotton and chemical fibers;

2. Computer controlled display of relevant parameters;

3. Doffer and cotton feeding roller variable frequency speed regulation;

4. Multiple synchronous toothed belt transmissions, smooth operation and low noise;

5. Visible vacuum plastic dust filter pipeline, smooth and smooth, continuous suction from multiple points, continuous pressure monitoring, and good dust removal effect;

6. New type of roller sorting plate and aluminum alloy front and rear fixed cover plate;

7. New leather ring guide cotton, maintenance free, easy to operate;

8. Convenient and safe fully enclosed safety cover, beautiful and elegant;

9. Multiple safety self stopping devices;

10. There are cotton net cleaners in front and behind the machine;

11. New high-quality metal racks;

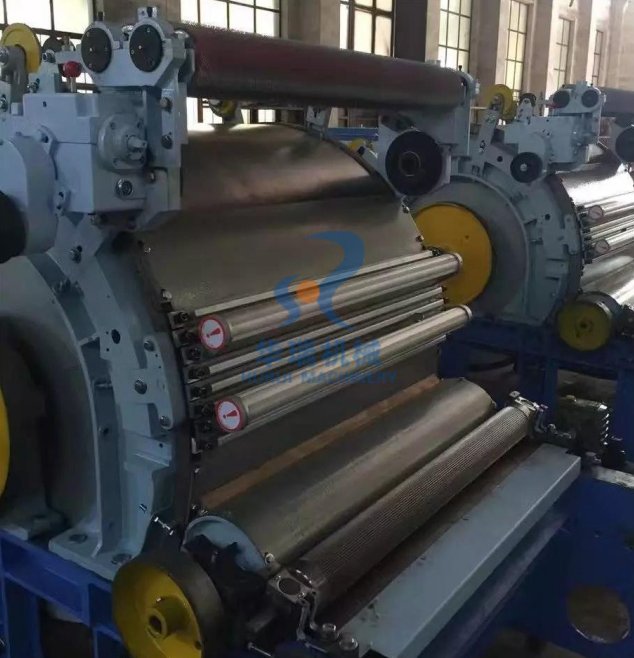

12. The cover plate rotates in reverse with the cylinder to enhance carding and improve the quality of the cotton mesh;

13. The cover plate flower stripping is replaced by the upper cutting blade by the brush roller;

Scope of application: This machine is suitable for pure cotton, synthetic fibers, and their blends with fiber length of 22-76 millimeters

Yield : up to 50kg/h

Production speed (meters/minute): up to 150

Cotton sliver weight (g/m): 3.5-6.5

Cotton feeding weight (g/m): 400-800

Working range (millimeters): 1000

Total draft ratio: 98-177

Cylinder working diameter (millimeters): diameter 1288

Cylinder speed (rpm): 326 /356 /428

Doffer working diameter (millimeters): diameter 706

Doffer speed (rpm): 6-60

Spinner roll working diameter (millimeters): diameter 250

Spinner speed (rpm): 674 /736/ 803/ 886/ 967

Number of rotary covers (working cover/total number of cover plates): 30/82

Rotating cover plate top speed (mm/min): 77-309

Additional sorting components: front fixed cover plate top (3), rear fixed cover plate top (3), and stabbing roller sorting plate top

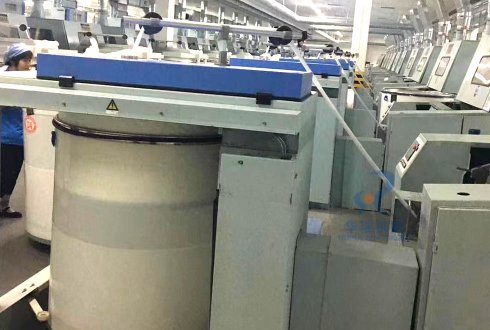

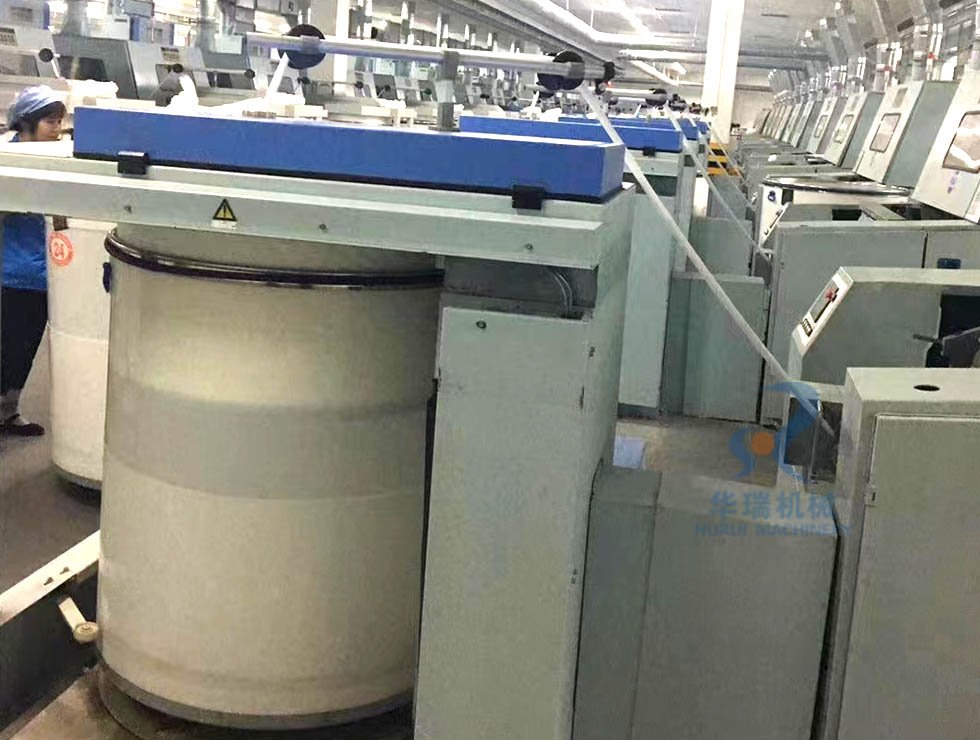

Applicable cotton swab tube (mm): diameter: 600 or 1000, height: 1100 1200

Continuous vacuum cleaning (m ³/ h) Air suction capacity 3500

Outlet static pressure (Pa): -920

Total installed power : approximately 6.6kw

Among them: Main motor 3.8kw

Doffer  motor 1.5kw

Cover plate cleaning roller motor 0.37kw

Cleaning roller motor 0.37kw

Cotton roller motor 0.55kw

Cover plate small brush motor 0.007kw

Safety cover type: fully enclosed

Floor area (length x width) (millimeters): 3442x1916 (excluding coiler)

Machine net weight (kg): approximately 5500
