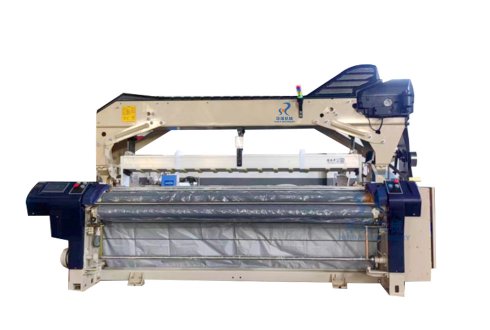

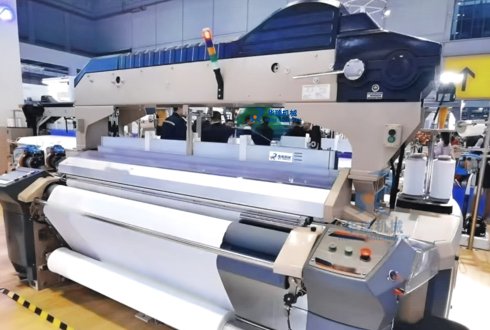

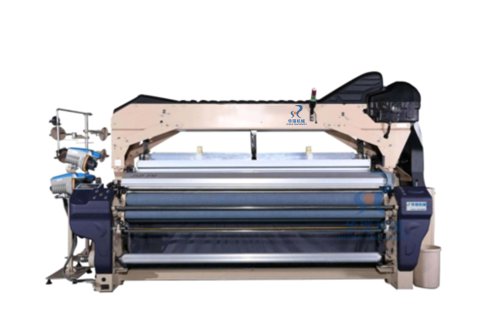

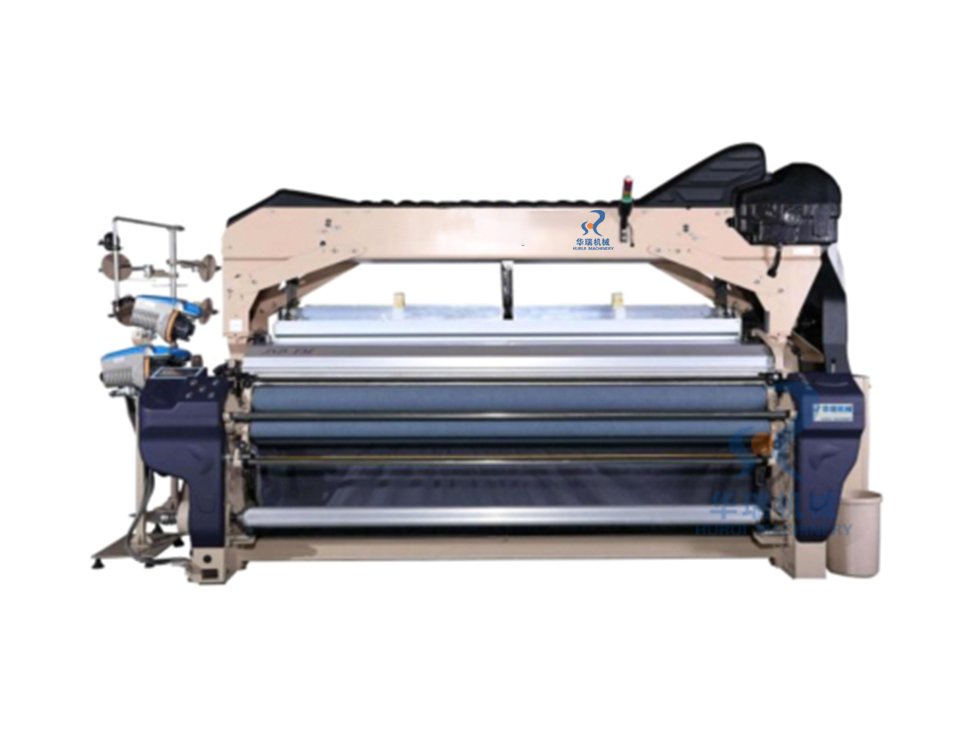

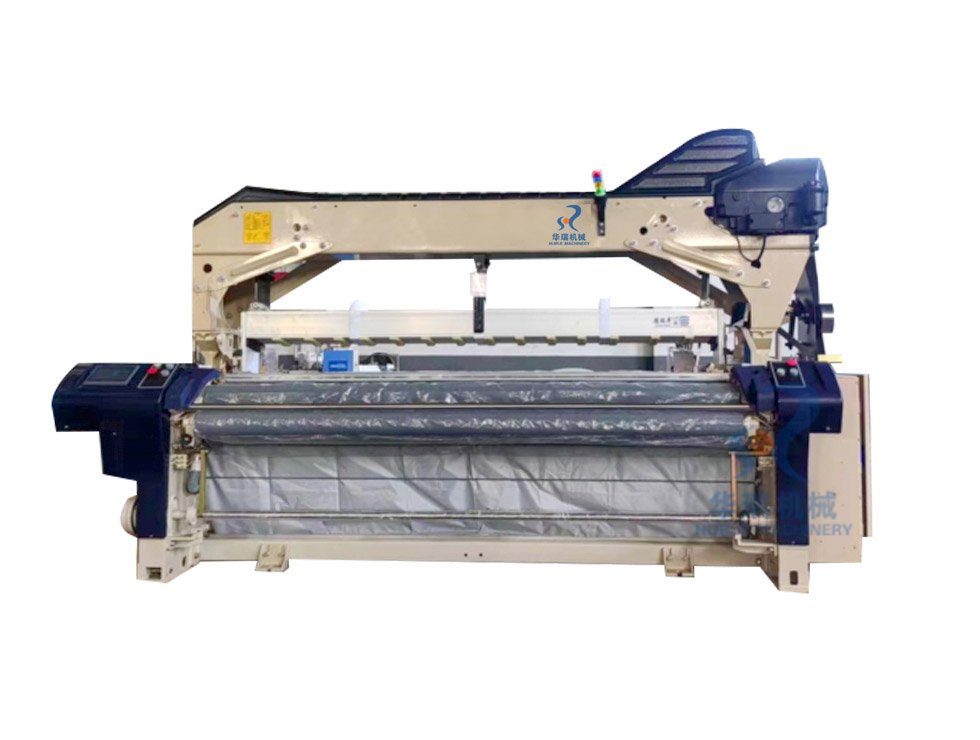

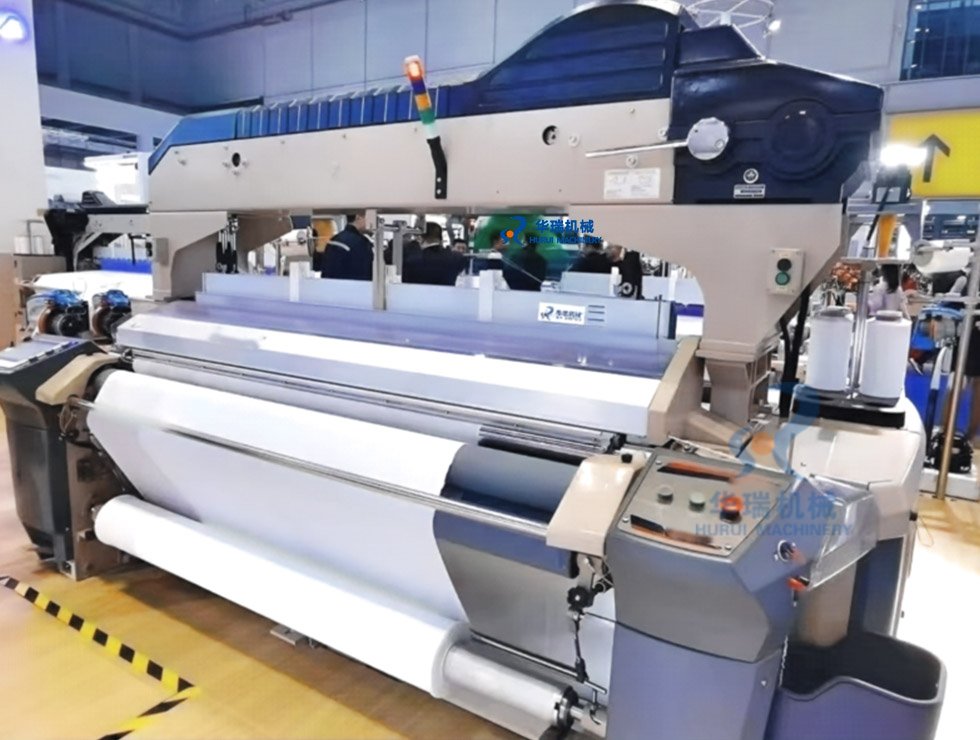

Qingdao Hurui Textile Machinery Manufacturing Co., Ltd is a production of HJW822 (170CM-360CM) Water Jet Looms Electronic Dobby Machine And CAM company, the company industry and trade integration, professional.


Optional electronic take-up and motor direct drive system.




The machine is suitable for weaving functional fabrics such oylon  four-elastic fabrics and saris.

Name

detailed introduction

Wallboard

Using integrated reinforced wall panels, material standard HT250, 480kg

Beating-up shaft

Φ159* 10(mm) Enhanced, qualitative heat treatment, sandblasting

Large box gear

Taiwan TA TUNG gear

Large box bearing

NSK、NACHI、FAG、SKF

Reed seat

SUS304 stainless steel reinforced

GREASE NIPPLR

Taiwan KUNDA,Centralized butter supply

Beam

160x120x12 (mm) international standard angle steel

Suction pipe

Φ70mm, 5mm thick.SUS304 stainless steel, reinforced

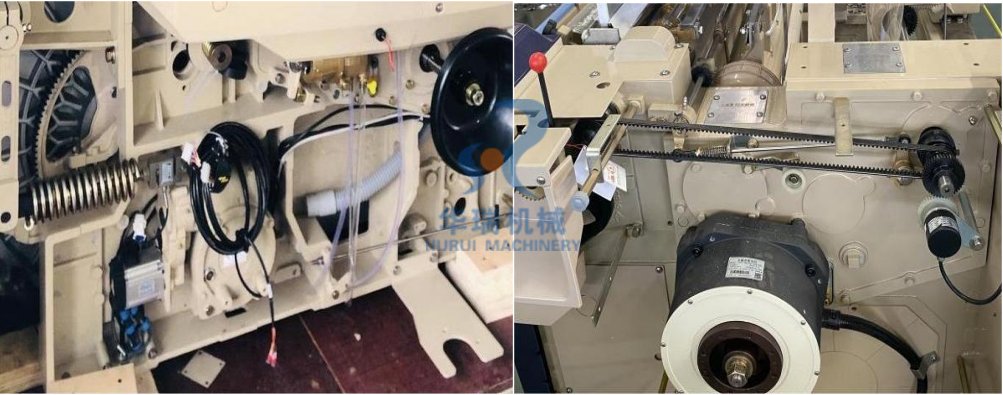

Warp let-off and take-up device

Electronic let-off, electronic take-up, touch screen settings

ELECCTRONIC CONTROL

XINLIAO /SANHE

Joint bearing

IGUS

MLO/MTU

SHIMPO Made in Japan

Copper parts and components

All under the JILONG brand

Motor

GUOFANG /HONGQI

Plunger

Ceramic plunger SHUTAI

Pump spring

Japanese AWA pump sprin

Nozzle

MDH and AWA

Check valve

South Korea titanium dioxide

Oil seal

CTY Made in Taiwan

Suction fan

Mechanical suction

Regulated water tank

Double-layer filtration, bucket type

Stainless steel screw

Taiwan Dongming SUS304 stainless steel

Waterproof

Thicker waterproof curtain, transparent waterproof cover plate.curtain, transparent waterproof cover plate

Dobby

NIUPAI -NP5400 Electronic dobby

CAM

NIUPAI -NPW409

warp beam

2 pcs warp beam ,disc diameter: 800mm, weight:34kg

Loom reed

2 per machine

cloth roller

2 cloth rolls per machine


Model

HJW822  DOBBY/CAM

Reed

170CM~360CM

Effective Reed

0~80CM

Power

3.7KW(belt main motor),4.5KW(servo main motor)

Structure

gear box structure ,oil lubrication system

Nozzle

1-2(set)

Pump

1(set)

Measuring feeder

electronic measuring&storage system

Beating

bicrank multilaid beating structure , super heavy weight balanced beating

Shedding

dobby /cam

Heald Frame

(Max)16 pic

Let off

electronic let off(standrd)

MLO、stepless speed transmission、belt transmission mode(optional)

beam diameter:φ800mm(standard),φ914mm、φ1000mm(optional)

L/R bi-bearing、bi-cudgel(standard)

Take up

electronic take up (standard).Weft density:5~82picks/cm

meachanical take up.Weft density:5~60picks/cm(standard)、35~90picks/cm(optional)

S or L take-up pattern,MAX.diameter:φ520mm

Catch Cord Device

gears cross-twist system、automatic yarn cutting sensor

Yarn-end  Disposal

false twist spindle

Weft Cutting

mechanical cutter

Electeic

fibre optical feeler

touch screen for warmup、start、stop、inch、reversed inch

digital watch indicates output、speed、efficiency and stop frequency

4-color lamp for indicating stop cause

speed changing device

Blower

electronic(240w),water absorption pressure bar for drier fabric(optional)

Weft Supply Stand

landen、fixed and two picks per set
