hr1238-high-yield-carding-machine

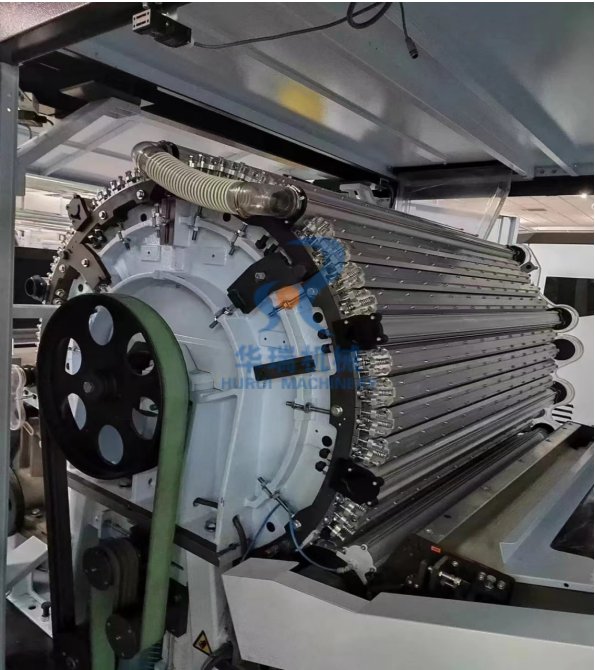

According to different raw materials, the double fixed cover plate, cotton mesh cleaner and aluminum alloy cover plate can be combined and configured in different ways, with flexible disassembly and assembly, and good impurity removal effect.

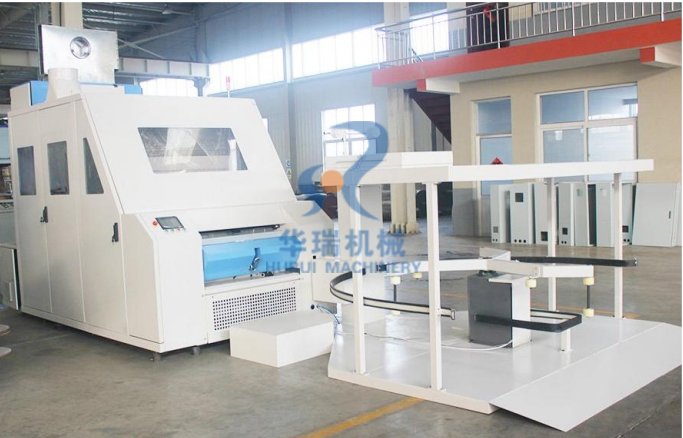

The coiler is equipped with automatic barrel changing and servo motor control system.

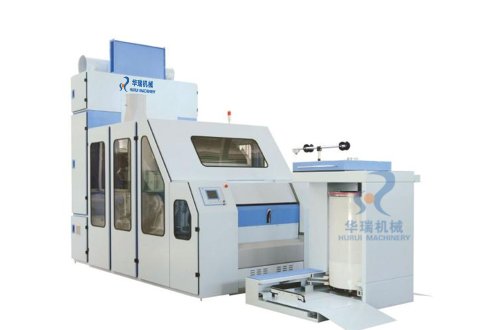

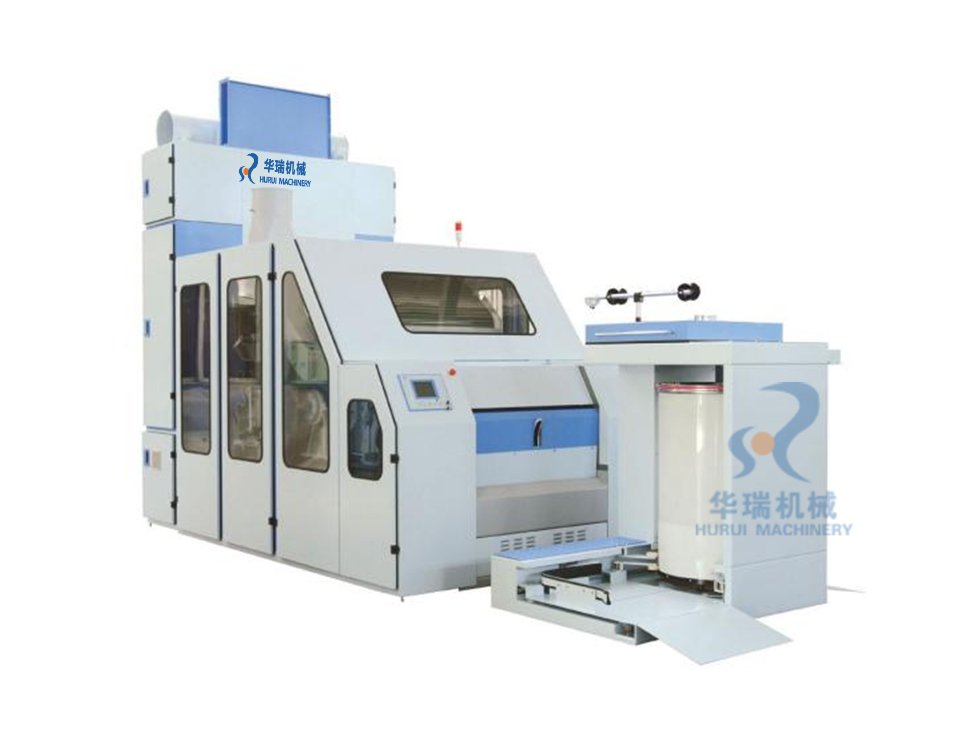

The HR1238 wide-width carding machine is a new generation of wide-width and high-yield carding machine developed by Qingdao Hurui based on the concepts of high output, efficiency, high quality and low consumption. This benefits from the wide application of high-tech materials and the core of the carding machine. Parts – Major adjustments to grooming areas. The output can reach up to 140 kg/h, and the strip delivery speed can reach 280 m/min. As the machine width is widened to 1.28m and the number of machines is reduced, investment costs are greatly saved in terms of land, labor and energy consumption. The process is more suitable for spinning and the performance is more stable.

Scope of application: This machine is suitable for pure cotton, chemical fiber and their blends with fiber lengths of 22 to 76 mm.

Maximum output (kg/hour): 140

Maximum delivery speed (m/min): 280

Cotton sliver quantity (g/m): 3.5～10

Cotton feeding weight (g/m): 400～1300

Working width (mm): 1280

Total draft ratio: 38～370

Working diameter of cotton feeding roller (mm): Φ100

Licker-in working diameter (mm): Φ250

Doffer working diameter (mm): Φ706

Doffer working speed (rev/min): 4.3～84

Cylinder working diameter (mm): Φ1288

Cylinder working speed (rev/min): 347～477

Number of rotary covers (working covers/total number of covers): 30/84

Cover speed (mm/min): 70～408

Brush roller speed (rev/min): 7~26

Feeding form: cotton box feeding

8 front fixed covers

10 rear fixed covers

Cotton mesh cleaner: front 3 and rear 3 (spinning cotton)

  2 front and 2 back (spinning chemical fiber)

Applicable sliver can (mm) diameter: Φ600 Φ1000　

Height: 1100, 1200

Continuous vacuum air volume (m3/hour): 4200

Outlet static pressure (Pa): -800

Compressed air pressure (kg/cm2): 6~7

Air consumption (m3/hour): 0.5

Total installed power (kW): 13.99

Safety cover form: fully enclosed

Overall dimensions (length x width x height) (mm): 5825X2480X3720 (∮1000)

Machine net weight (kg): about 7800
