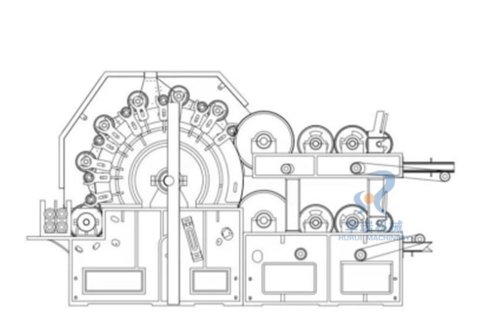

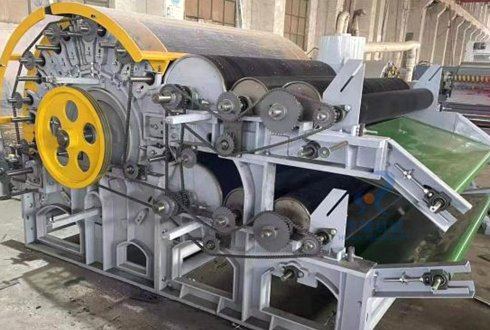

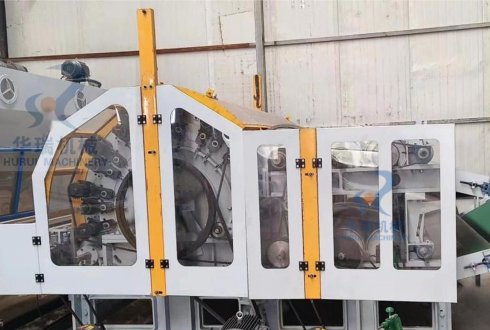

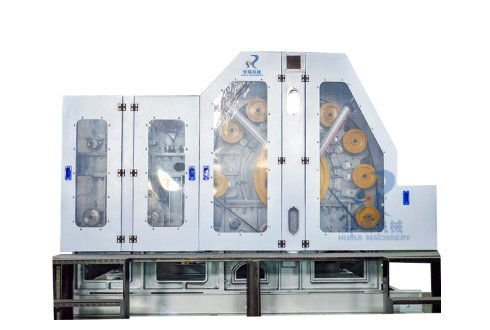

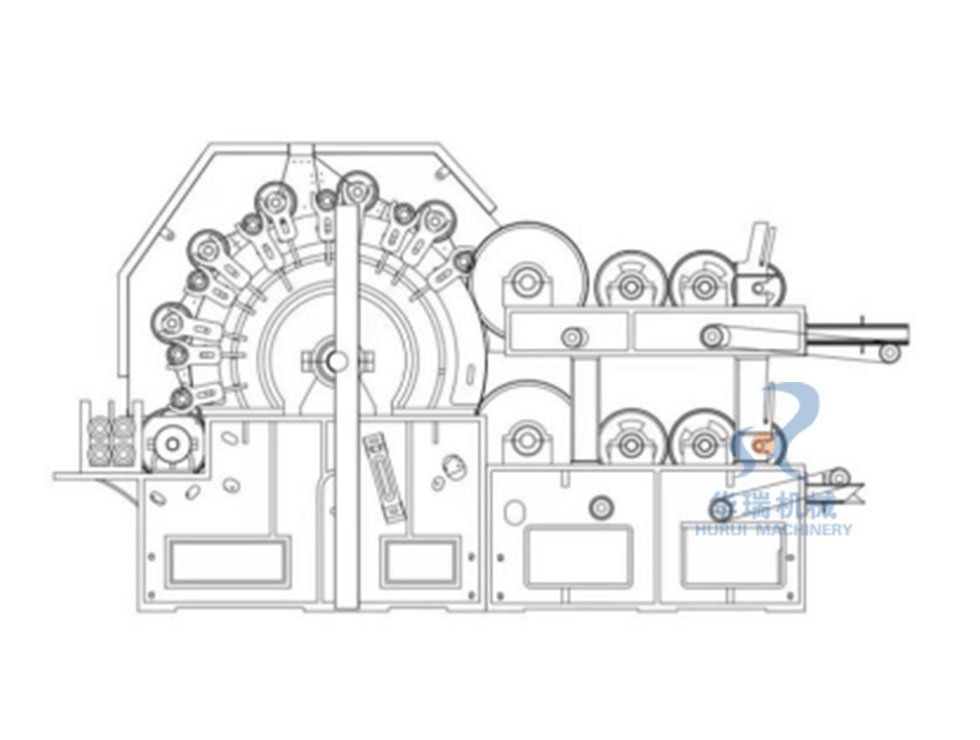

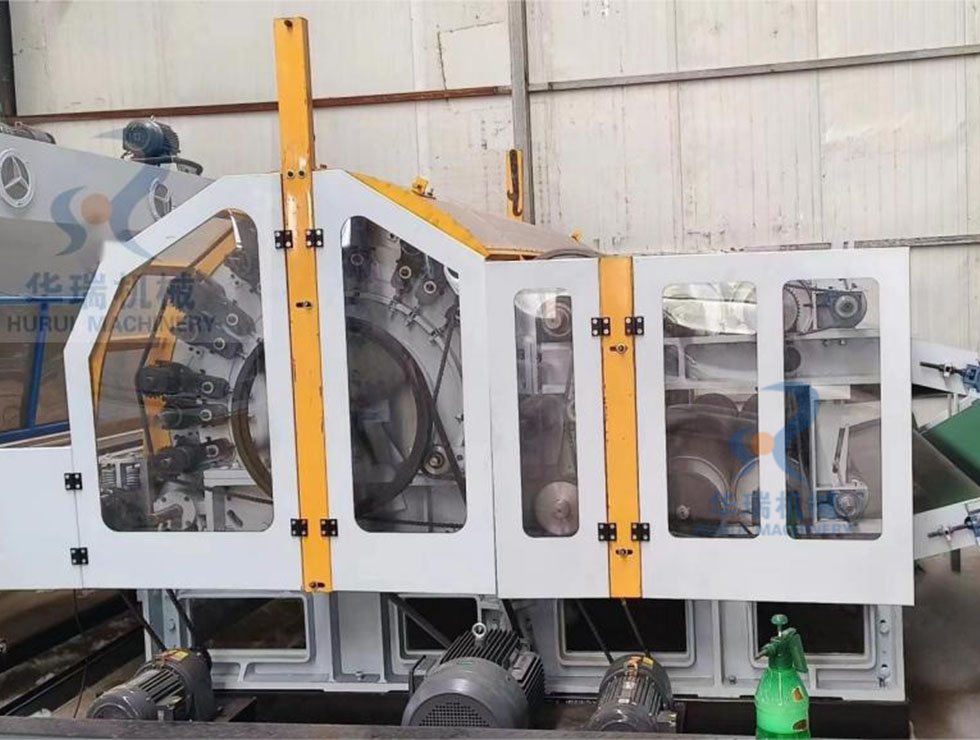

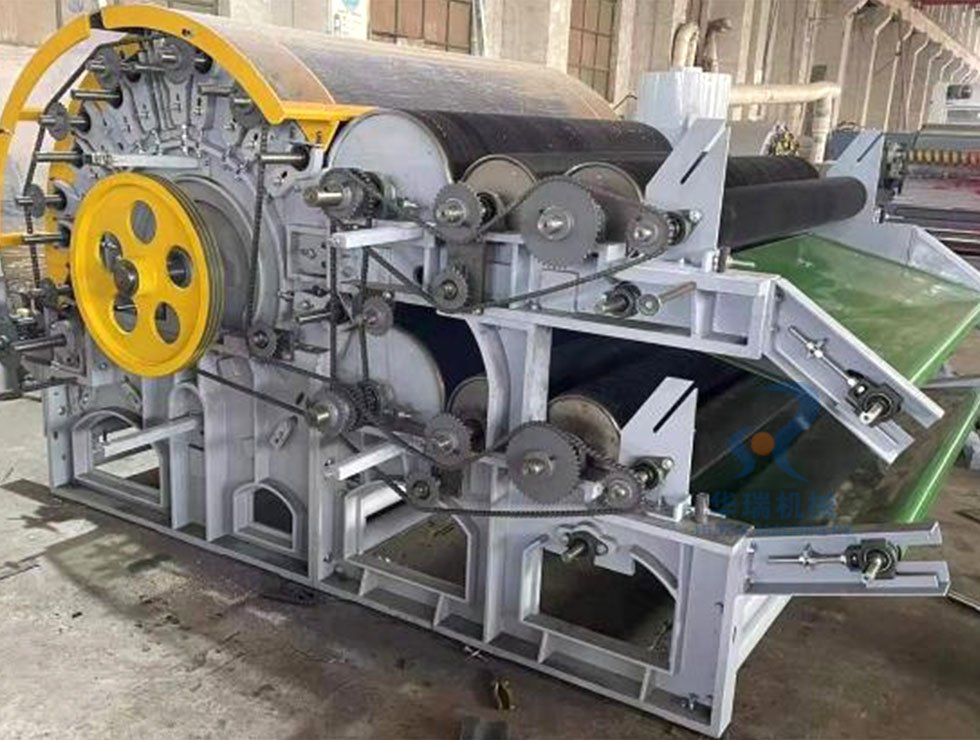

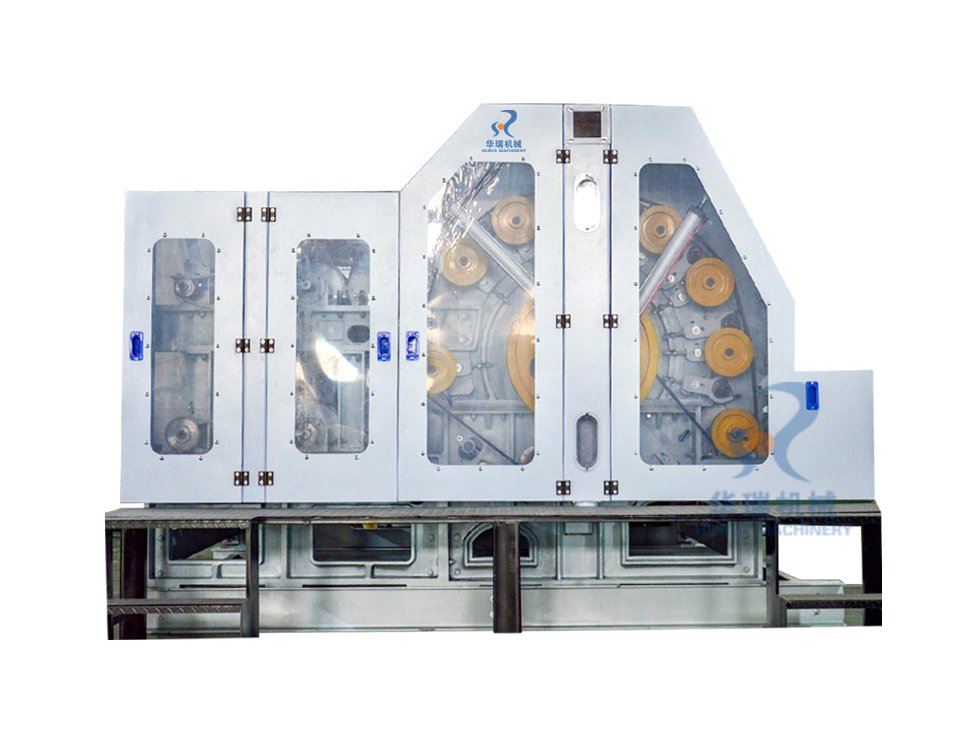

Single cylinder and double doffer carding machine: The machine is equipped with a single cylinder, double doffers, four bristle condensing rollers, and stripping rollers. All rollers of this machine are tempered and qualitatively treated before precision machining. The wall panels are made of cast iron and the card clothing is made of high-quality GERON card clothing. Equipped with air suction device to reduce cleaning times. It also comes with a walking platform. It has the advantages of strong carding ability and high output.
Equipment model | HR2000 |
Working width | 1550/1850/2000/2300/2500mm |
Hourly output | 100-500kg/h, varies depending on the product |
Cylinder diameter | Φ1230mm |
Doffer diameter | Φ495mm |
Feed roller diameter | Φ86 |
Work roll diameter | Φ165mm |
Stripping roller diameter | Φ86mm |
Licker-in diameter | Φ295mm |
Stripping roller diameter | Φ219mm |
CMessy roller | Φ295mm |
Suction side fan impeller | Aluminum |
Installed power | 20.7-32.7KW |
