The machine is mainly used for opening cotton, wool, linen, chemical fiber and other raw materials for future supply.
The machine can also be used for non-woven scraps and other textile materials.The machine opens fibers with less damage and high output.
Easy to adjust and easy to use, it is currently an ideal equipment for opening various fiber materials.
This machine is composed of two sets of feeding rollers to enhance the grip of raw materials. The feeding motor and fan are controlled by frequency converters, and the air duct is equipped with a powerful magnet device.

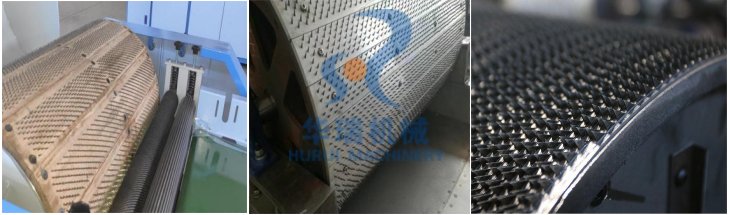

There are three kinds of opening rollers: wooden needle plate, aluminum needle plate and metal card clothing, which can be selected according to the condition of fiber raw materials.
Working width | 1000mm |
Opening roller | Φ600mm |
Main motor | 7.5kw/50hz |
Feed motor | 1.5kw/50hz |
Fan motor | 4kw/50hz |
Yield | 500kg/h |
Machine size(LxW) | 2980x1968mm |
